Details:
Code: S2J

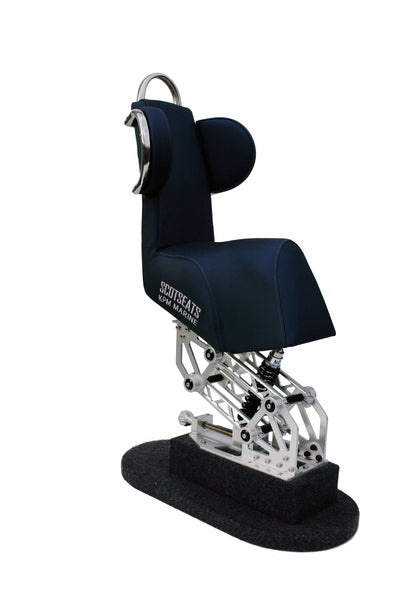

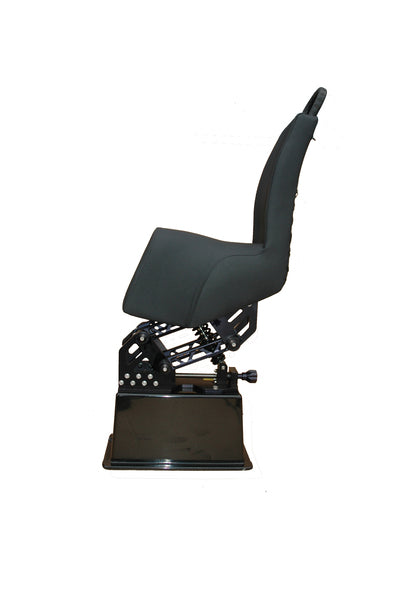

The S2J Jockey Seat is our most popular jockey seat due to its high spec and great value. The standard S2J Jockey Seat comes with 150mm suspension travel with a spring assisted hydraulic damper the extreme edition comes with a FOX Float air shock click here for more information. Both variants have height and weight adjustment as standard and are the lightest seat in its category with a compact footprint which allows for easy fitment of multiple seats in confined spaces. References: The Netherlands Royal Navy / Marines, Cameroon Navy, Hong Kong Marine Police, UK Marine Police, just to name a few.
Scot Seats work with various organisations, regulatory bodies and associations to ensure that their seats meet the requirements and standards expected for Shock Mitigation seating. Our suspension systems are continuously undergoing testing using the data collated to improve techniques and designs.
There are several directives and guidance notes set out by the EU and the MCA on the effects of reducing shock mitigation, and seating is seen as a key area to help reduce the impact.
There are several seating options available:
The jockey seat is the most popular for small high speed craft where the occupant is in almost a standing position straddling the seat like a saddle on a horse with both feet on the deck and knees slightly bent. This position keeps the posture correct to lessen the chance of injury. Good seats will be able to be adjusted according to the height and weight of the people using the seats.
Larger vessels tend to use the fully seated, feet off the deck Shock Mitigation seat. This seat is generally available with a safety harness or lap safety belt to secure the occupant in the seated position at all times.
Lateral force can be one of the most damaging to the spine and occupant.
The Scot Seats Shuffle™ system reduces the force significantly and when combined with the seat design the mitigation foam gives a superior level of ride, comfort and protection to the occupant.
Constant or single impacts, shock blasts or vibrations can cause fatigue, reduce proficiency, pain, injuries and even death. Scot Seats use the MITIGATOR™ technology, which is an engineered cushioning system designed to protect people and equipment from these assaults.
Scot Seats products are all stress tested and designed to comply with IMO High Speed Craft Code.The Scot Seats KPM-Marine suspension system is under continuous test and as a result we have amassed a vast amount of data in all sea states and body types.

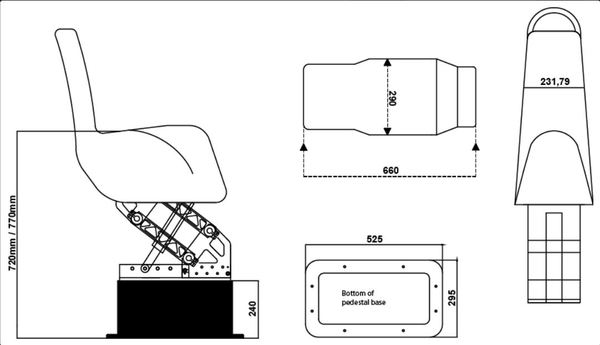

Standard Specification for the S2J:
- 150mm progressively damped shock mitigation system3 Stage adjustable damper for weight
- 50mm height adjustment with automatic Body Mass Index compensation
- MITIGATORTM- Military spec mitigation foam (optional)
- Compact foot print
- Top grab handle
- Manufactured using marine grade anodized aluminium and stainless steel (316), GRP
- Toughtec upholstery anti-slip, hard wearing, water and UV resistant (black or grey)
- Weight - from 21.5kg
Optional Extras for the S2J:
- Upgrade to WIDE/COMFORT Jockey seat top
- GRP Mounting Pod (includes foot rest with S2H)
- Quick turn height adjustment
- Mitigation Foam (1/2")
- Trimmed in marine vinyl colour of customers choice
- Side Support wings (powder coated)
- Side wings polished instead of power coated
- Side Grab Handles (instead) of wings
- Top Grab Handle
- Insulated anti-slip cover for grab handle
- Front Passenger Grab Handle
- Waterproof cordura seat cover
- Elasticised mesh rear holding pouch
- Custom embroidery on seat back (15 seat up fee-one off charge)

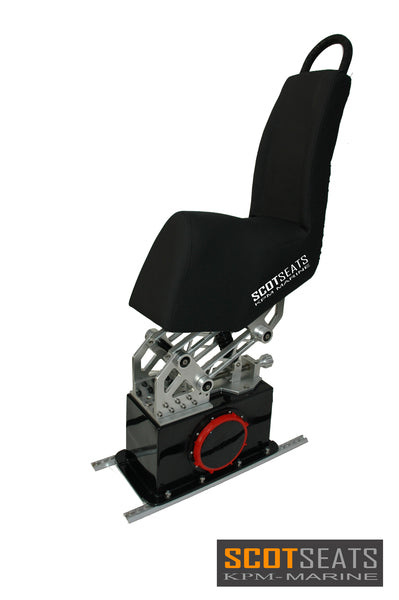

- Track Mounting System (must have tracking)
- Tracking (2 x tracks per seat can be 1 x 3m)
- Custom made mounting POD (double, triple seat POD)
Price on application.
